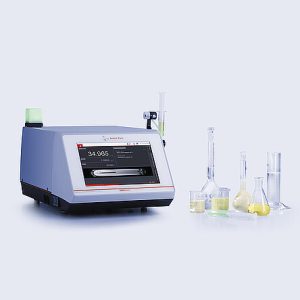

Density Meter for the Petroleum Industry: DMA™ 4200 M
The DMA™ 4200 M density meter measures all of your petroleum samples, including crude oil, intermediate products, asphalt, bitumen, liquefied petroleum gas and high-viscosity liquids. Using DMA™ 4200 M means that tedious, manual and time-intensive measurement with pycnometers or hydrometers is a thing of the past. Only 2 mL of sample is needed and even viscous samples are filled easily. Measurement in a temperature range from -10 °C up to 200 °C even allows density checks on samples which are solid at room temperature. DMA™ 4200 M automatically calculates the density values for the required reporting temperature using the built-in API tables, without the need for manual temperature compensation. After measurement, the DMA™ 4200 M sample cell is quickly cleaned with only a small amount of solvent.
Key Features Density Meter DMA™ 4200 M
Speeds up your density checks
- Ten times faster than with traditional methods
- Only 2 mL of sample required
- Easy filling, even of samples which are solid at room temperature
- Automatically calculates the density values for the required reporting temperature using the built-in API tables, without manual temperature compensation
- The sample cell is quickly cleaned with only a small amount of solvent
Many tasks at many locations
- For incoming crude oil, checks on intermediate samples and QC of asphalt, bitumen and LPG
- Accessory for filling LPG available
- Accessory for filling hot asphalt/bitumen samples available
- Measurement under pressures of up to 500 bar
- Replaces pycnometers and hydrometers
A heart stronger than steel
- The heart of DMA™ 4200 M is a U-tube made of Hastelloy, which has a much higher chemical resistance to hydrochloric acid and sour gas than stainless steel
- Long-life with no risk of breakages or corrosion
Technnical Spesification
| Measuring range | |
| Density | 0 to 3 g/cm3 |
| Temperature | -10 to +200 °C (14 to 392 °F) |
| Pressure | 0 to 500 bar (0 to 7,250 psi) |
| Accuracy | |
| Density | Up to 0.0001 g/cm3 |
| Temperature | 0.03 °C (0.037 °F) |
| Repeatability s.d | |
| Density | Up to 0.00005 g/cm3 |
| Additional information | |
| Cell material | Hastelloy C-276 |
| Volume of the measuring cell | approx. 2 mL |
| Dimensions / Weight | 510 x 330 x 230 mm / 27.1 kg (20 x 13 x 9 inches / 59.7 lbs) |
| Power supply | AC 100 to 240 V , 50 to 60 Hz, 250 VA |
| Connections | Pressure fittings for metal tubes with 1/8″ outer diameter |
| Interfaces | 4 x USB (2.0 full speed), 2 x S-Bus, 1 x Ethernet (100 Mbit), 1 x CAN Bus, 1 x RS-232, 1 x VGA |
Standards
A
ASTM D4052
ASTM D5002
U
USP 841 – Specific gravity
| Brand | Anton Paar |
|---|---|
| Instrument | Densitymeter |
| Product Line | Liquid Density & Concentration-meter (LDC) |
