Xsample 330

  • The single sample changer for a wide range of samples
  • Prevents sample carry-over with automatic rinsing and drying after each sample
  • Highly resistant wetted parts for handling aggressive samples

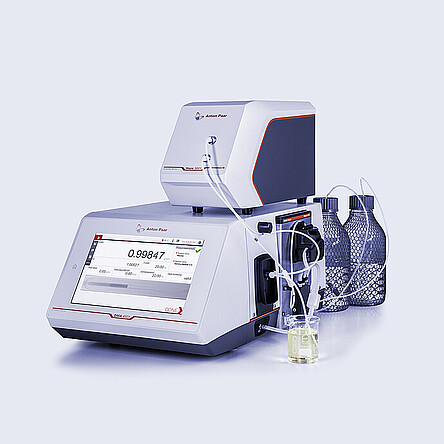

Sample changer: Xsample 330


The new industrial grade peristaltic pump in combination with automatic cleaning makes Xsample 330 perfectly suitable for measuring single low-viscosity samples with widely different properties in direct succession. Once measured, the sample is drained or recovered and the system is automatically cleaned with up to two cleaning agents. A drying step is performed by the operator to perfectly prepare the measurement cell(s) for the next sample.

Key features

Automatic cleaning

  • Automatic rinsing and drying after each sample for perfect preparation of the system
  • Up to two different cleaning agents can be used in any order for an individual cleaning procedure.
  • Advanced settings for cleaning procedures to increase measuring performance

For a wide range of samples

  • Filling with peristaltic pump covers a wide range of different sample viscosities up to 3,000 m.Pas
  • All wetted parts of Xsample 330 (high resistance) are made of durable materials for aggressive samples, such as phosphoric acid or trichloroacetic acid
  • Adjustable filling modes for different types of samples enable perfect measuring results

Highly efficient sample handling and easy operation

  • Depending on the system size, only a minimum amount of sample volume is needed to perform a measurement
  • Easy operation by an integrated user interface on the master instrument
  • Straightforward measurements of different sample viscosities due to a sensor-controlled stop of the filling procedure
  • Automatic sample recovery returns expensive or hazardous samples back to their vials
