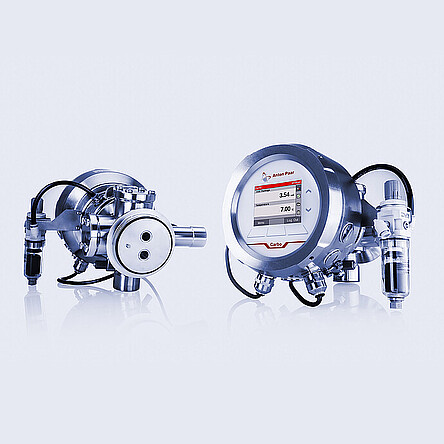

Inline CO₂ Sensor:
Carbo 5100
Anton Paar’s CO₂ sensors continuously deliver true CO₂ values for any beverage, at an outstanding total cost of ownership. Carbo 6100 and Carbo 6300 are maintenance-free and EHEDG-certified. Beyond process monitoring, the 4-second measuring interval permits reliable and stable closed-loop control of the carbonators. Carbo 5100 uses proven, reliable, super-accurate measuring technology and requires only once-a-year maintenance. Additionally, the newly developed technology, combining Carbo 6X00 and Carbo 5100, allows operators to measure foreign gases like nitrogen or nitrous oxide in their carbonated samples.
Key features
Zero maintenance: Save time and money with the Carbo 6X00 series
Save on running expenses and get the lowest total costs of ownership (TCO): While conventional CO₂ sensors can multiply their price over an entire service life due to recurring maintenance, Carbo 6100 and Carbo 6300 are completely maintenance-free:
- No moving parts with wear to exchange
- Self-diagnosis according to NAMUR NE 107
Carbo 5100 requires service only once per year when operating 24/7. By using the optional cut-off adapter it can be removed from the product line without time-consuming and expensive production stops.
Suitable for all beverages: Be flexible with your beverage types
The Carbo sensors can deal with any beverage, even with those containing fruit fibers or pulp. Carbo 5100 and Carbo 6100 start measuring right after a fast selection of the proper product type. Carbo 6300 has an additional unique and patented* measuring channel to detect the beverage type. No matter whether carbonated soft drinks, beer, wine, or sparkling water, Carbo 6300 makes your product changes easier.
Your best fit: Easy integration and automation in the process
The new-generation CO₂ sensors can be installed inline or in a bypass or tank, according to your needs. They are easily integrated into your workflow using the touchscreen interface of the built-in evaluation unit, via the Pico 3000 software, or with the help of the mPDS 5 evaluation unit.
The sensors can be adapted to support several communications protocols such as: analog (4 mA to 20 mA), Modbus RTU, Modbus TCP, HART, PROFIBUS DP, PROFINET IO, and EtherNet/IP.
Fast and reliable results whatever the conditions
Carbo 5100 is designed following EHEDG guidelines and its proven measurement principle delivers correct results at any time. The optical sensors Carbo 6100 and Carbo 6300 use a patented* technology that eliminates the risks of incorrect measurements, e.g. after hot cleaning (CIP). The Carbo 6X00 series is EHEDG-certified, which reduces the time and effort required during cleaning procedures.
Speed meets excellence: Get your results within seconds
With a measuring interval of only a few seconds, the sensors of the Carbo series are known as the fastest CO₂ sensors on the market, also suitable for closed-loop control of carbonators. With Carbo 5100 and Carbo 6X00 you always know the actual CO₂ concentration of all beverages in your process, with the highest accuracy and repeatability even under start/stop conditions. The optical sensors deliver correct measurements even during long flow stops, directly in the production line.
Foreign gas measurement
Anton Paar provides two inline solutions for measuring CO₂ in carbonated beverages: sensors using traditional manometric determination and those employing optical measuring principles. For additional dissolved gases like nitrogen in beer or nitrous oxide in sugared soft drinks, a combination of both measuring principles is utilized to achieve optimal results for each gas component (Patent US-2021349036-A1). This innovative measurement technique combines decades of inline beverage analysis experience with cutting-edge technology. Notably, for nitrous oxide, this is the only method available on the market.
