The easiest-to-use rotational viscometer – unpack and measure

Setup takes less than two minutes: ViscoQC comes preassembled and includes an SOP booklet with first steps and straightforward user training. Our rotational viscometers guide you from startup through the entire measurement process via an intuitive user interface. Continue to use the SOP methods of your existing rotational viscometer: ViscoQC uses the same instrument setup and measuring settings to deliver the same results. Spindles with magnetic coupling for easy, fast, and safe spindle exchange come as standard.

Make your viscosity measurements error-proof and 100% traceable with our unique Toolmaster™ feature: spindles are automatically detected by the viscometer as soon as they’re attached. With ViscoQC 300, you can further restrict each method to a unique spindle identity. Furthermore, all connected accessories are detected and documented as well:
Built-in digital leveling automatically monitors and indicates the correct levelling status, which prevents faulty measurements and ensures remarkable, full-scale range accuracy of ± 1%. If you need to measure new formulations, ViscoQC automatically leads you to the right spindle/speed configuration using TruMode™.

You can upgrade your ViscoQC with accessories to cover any need:

• PTD 80 – For fast and accurate control of sample temperature (+15 °C to +80 °C)
• PTD 175 – High performance temperature control, suitable for standards like ASTM D2983/D8210/D5133/7110 and DIN 51398

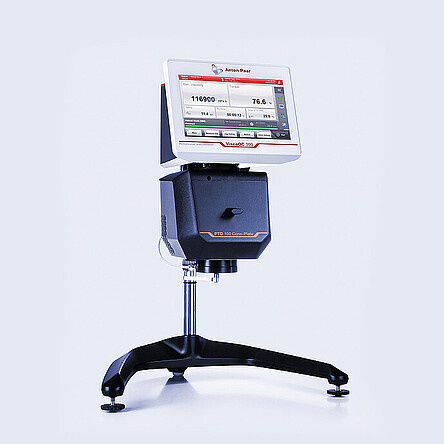

• PTD 100 Cone-Plate – For small sample volumes (0.5 mL to 2 mL)
• ETD 300 – For high-temperature measurements of bitumen and hot melts, and for standards like ASTM D4402 and AASHTO T316
• Heli-Plus – For non-flowing substances like gels, pastes, and creams

You can add other software functionality to ViscoQC 300 with V-Curve, adding real-time graphs, analysis (e.g., yield point), programmability, and extended method functionality.
Be fully compliant within one day

ViscoQC is qualified and ready to use within a single day and is compliant to 21 CFR Part 11, GMP, and GAMP 5. The V-Comply software for ViscoQC 300 delivers features like audit trail, electronic signatures and advanced user management. Additionally, it can be accompanied by a pharma qualification document. This elevates the qualification process to much more than just a simple installation and basic IQ/OQ. An in-depth risk analysis, performance qualification, traceability matrix, and final qualification report enhance the value of the qualification package for the entire qualification process.

Every ViscoQC includes the V-Collect PC data collection software. As ViscoQC 100 doesn’t store any data, results are directly exported or printed via the Brother QL-700 label printer after each test. ViscoQC 300 has memory space for up to 999 measurements with up to 10,000 sub-measurements on 150 MB. Additionally, it’s possible to print and export data as PDF, CSV, page printer (USB or network), or label printer. For automated data export, ViscoQC 300 can be integrated into your network via Laboratory Information Management System (LIMS) or FTP Server. Kickstart your paperless lab with AP Connect to connect your instruments, communicate measurement information, and ensure compliance.

Since ViscoQC uses highly durable bearings and regularly performs an automatic bearing check (TruSine™), your uptime is maximized and ongoing service costs are reduced to a minimum. All of our spindles are made of superior stainless steel (AISI 316L), which increases spindle lifetime by protecting them from corrosion.
